Trolleys

Material Flow Systems Trolley Line

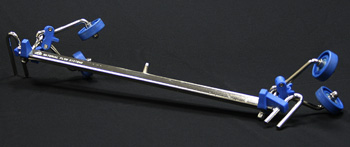

LTE TROLLEY

  • 50 lbs. capacity
  • Up to 60 garments per load bar
  • Zinc plated. 19" load bar capacity
  • Separation pins as needed on load bars
  • Can be utilized on conveyor
  • Can accommodate trapeze for additional capacity
  • Nylon tires with shielded double row precision ball bearings
  • Trainable trolleys by way of unique coupling mechanism Replacement parts readily available

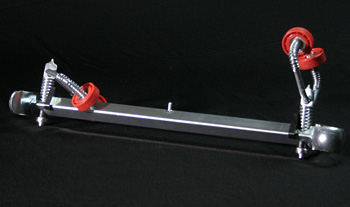

LTG TROLLEY

  • 50 lbs. capacity
  • Up to 50 garments per load bar
  • Zinc plated. 19" load bar capacity
  • Separation pins as needed on load bars
  • Can be utilized on conveyor
  • Nylon tires with shielded double row precision ball bearings
  • Trainable trolleys by way of unique coupling mechanism

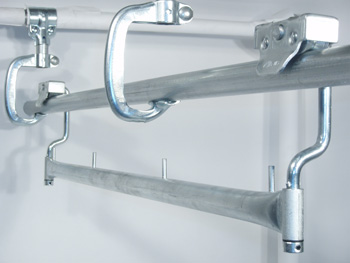

T-195 (SLICK RAIL TROLLEY)

  • 200 lbs. capacity
  • Steel head
  • Zinc plated
  • Slide stop pins for use on inclined conveyors
  • Built-in stops limit rotation of head for easy placement on rail
  • Thrust washer assures free swiveling of the head for smooth tracking through bends
  • 36' standard load bar (custom sizes available)
  • Shielded double row ball bearings, pre lubricated. 4 spools (8 bearings) per trolley
  • Can accommodate trapeze for additional capacity

TROLLEY TRAPEZE

  • 50 lbs. capacity
  • Up to 120 garments (doubles the capacity of garments)
  • Zinc plated hook steel rods
  • Separation pins as needed on load bars
  • 37" drop from eye bolt to eye bolt allowing sufficient clearance
  • Designed to be easily put on and taken off of trolley
  • Also works in train assembly
  • Can be utilized on conveyor
